1. Introduction

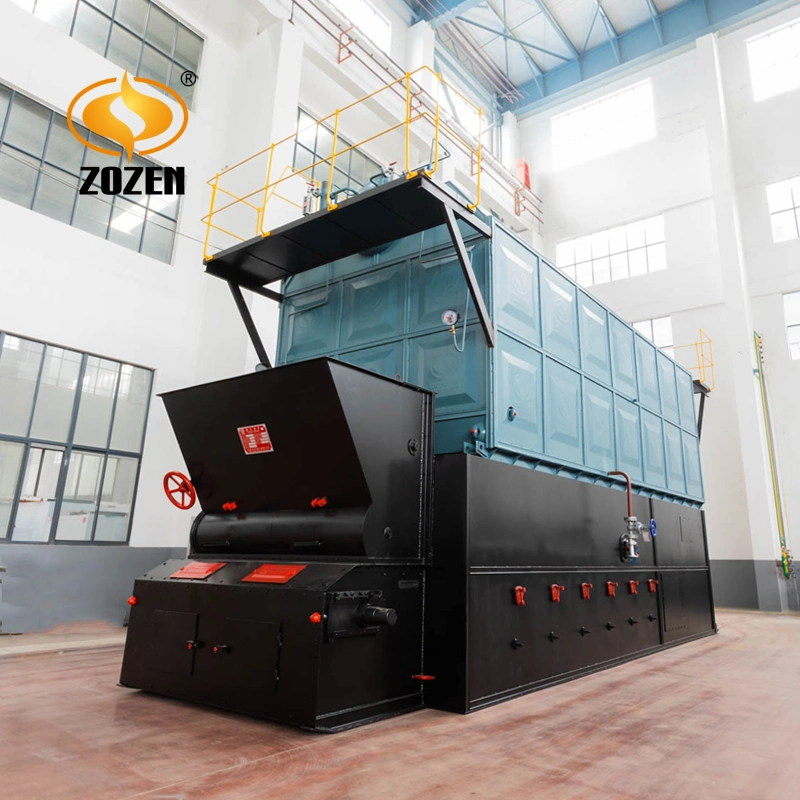

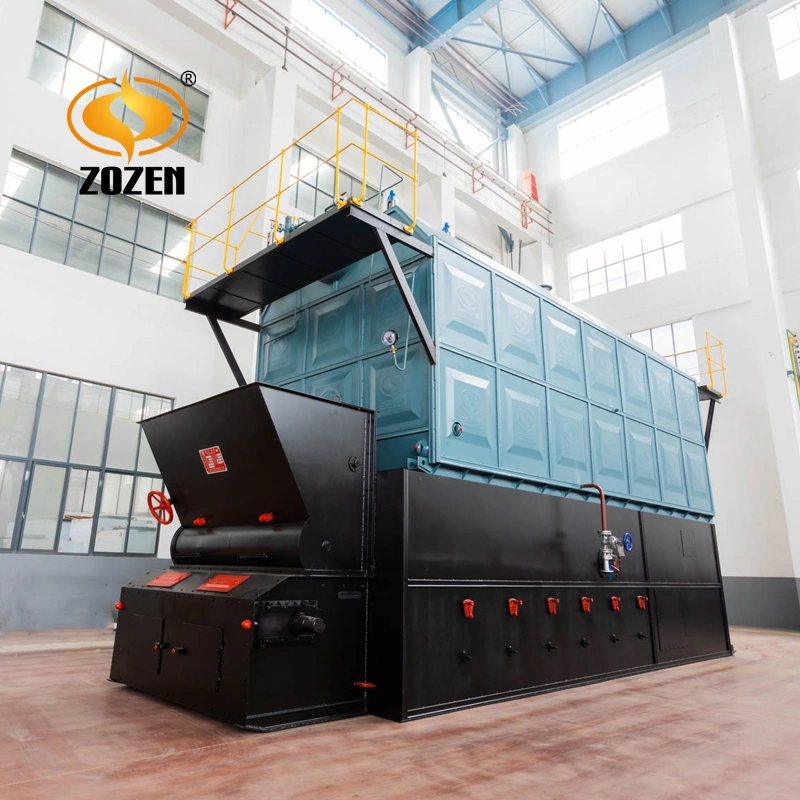

SZL series vertical dual drums chain grate water tube steam and hot water boiler, adopts quick fitting and assembly structure. The 4-6t/h boiler is of quick fitting tube structure, exit shop after completely assembled, the boiler of 6-35t/h is composed of 2 main components. The upper assembled component is the boiler proper heat absorbing part, and the lower assembled component is of combustion equipment. The former part of the boiler proper is arranged a membrane wall, the upper part of it is connected to boiler cylinder, and its lower part is connected to collective chest, so as to form a combustion room and absorb the radiated heat from the furnace. Its rear part is arranged with dense convection tubes between upper and lower boiler cylinders. The high temperature smog after combustion shall stand for twice returning flushing transversely to the heat accepting surfaces, and shall be introduced to coal saver singly arranged, and flow into duster and exhausted from chimney in the end.
2. What uniqure features do I have ?
2.1 After simplifying the water-cycle route, we can reduce the water-cycle resistance, raise ascending tube velocity, improve the stability of the water cycle and ensure a safe and stable operation.
2.2 Design enough heating surface, which makes more heat from fuel absorbed. Flue smoke temperature can be lower than 170ºC.
2,3 Reasonably design front and back arch to improve the temperature in the furnace. We also strengthen the disturbance of smoke in the high temperature area. These reduce heat lose and fly ash loss as a result of incomplete combustion.
2.4 We adopt light chain grate and independent air chamber. We strengthen the seal airtight of the two sides of chain grates. These make the fuel burn fast and fully.
2.5 Our boiler have a large convection heating surface, a stable performance and even a long time overload work. What's more, we design the convection tube bundles in alternate permutation instead of in line arrangement. All of these designs make our boilers obtain a higher heat efficiency than normal, up to 81%.
2.6 We design double side air inlet and independent air plenum. And at the exit of furnace, we set up a smoke separation device by inertia, which makes the original discharging dust concentration lower than 1800 mg/Nm3. Our high efficiency dust collector makes sure the dust removal efficiency up t0 90%, SOX and NOX removal efficiency up to 98%. These measures can meet the global demands and standards of environmental protection.
2.7 Compact structures are designed, except the 4t/h and 6 t/h packaged steam boiler. That can save boiler house and reduce the installation workload and time.
2.8 We enlarge the diameter of steam drum to supply a big space of water-steam separation device. So that we can offer steam in good quality.
2.9 High automatization, safe and easy operation. In the electrical control cabinet, we design automatic feeding water, alarm and safety interlock of high/low water level, air blower and draft fan.
3. What are my control and safety systems?
3.1 The control and safety systems are interlocked in an electric control cabinet.
3.2 Alarm system
3.2.1 Sound-light alarm of high and super-high steam pressure;
3.2.2 Sound-light alarm of high and lowe water limit level;
3.2.3 Sound-light alarm of pressure loss in the water pumps;
3.2.4 More safety devices are designed and connected with the electric control cabinet (ECC). More details will be explained in the ECC Manual.
4. Where is my home and production Flow?
5. Product Specs.
| Product thermal capacity: | 4-35 t/h |
| Working pressure: | 1.0-2.5 MPA |
| Outlet temperature: | 184-350 ºC |
| Available fuel: | Bituminous coal, lean coal, anthracite |
| Available industries: | Heating, chemical, food, tobacco, textile, print and dyeing, feed, medicine, building materials, wine, hospital |
Model | Rated evaporation(t/h) | Rated working pressure(MPa | Rated steam temperature | Thermal efficiency(%) |
SZL4-1.25-AII | 4 | 1.25 | 194 | 82.8 |
SZL4-1.60-AII | 4 | 1.6 | 204 | 82.8 |
SZL4-2.45-AII | 4 | 2.45 | 225 | 82.8 |
SZL6-1.25-AII | 6 | 1.25 | 194 | 82.8 |
SZL6-1.60-AII | 6 | 1.6 | 204 | 82.8 |
SZL6-2.45-AII | 6 | 2.45 | 225 | 82.8 |
SZL8-1.25-AII | 8 | 1.25 | 194 | 83.2 |
SZL8-1.60-AII | 8 | 1.6 | 204 | 83.2 |
SZL8-2.45-AII | 8 | 2.45 | 225 | 83.2 |
SZL10-1.25-AII | 10 | 1.25 | 194 | 83.2 |
SZL10-1.60-AII | 10 | 1.6 | 204 | 83.2 |
SZL10-2.45-AII | 10 | 2.45 | 225 | 83.2 |
SZL20-1.25-AII | 20 | 1.25 | 194 | 85.8 |
SZL20-1.60-AII | 20 | 1.6 | 204 | 85.8 |
SZL20-2.45-AII | 20 | 2.45 | 225 | 85.8 |
SZL30-1.25-AII | 30 | 1.25 | 194 | 86 |
SZL30-1.60-AII | 30 | 1.6 | 204 | 86 |
SZL30-2.45-AII | 30 | 2.45 | 22 5 | 86 |
SZL35-1.25-AII | 35 | 1.25 | 194 | 82.8 |
SZL35-1.60-AII | 35 | 1.6 | 204 | 82.8 |
SZL35-2.45-AII | 35 | 2.45 | 225 | 82.8 |
6. ZOZEN Creates Value For You
- Wide adaptability to a range of fuels including bituminous coal, lean coal and anthracite
- Save you money and time with custom designed and engineered feeding system, slag discharge system, flue gas treatment system and boiler house layout plans;
- Thermal efficiency 5%~15% higher than other boilers, annual fuel cost savings for each 10tph boiler as high as USD70,000;
- High level of automation that requires less involvement of operational and maintenance personnel;
- Safety assured by the advanced control system
7 . ZOZEN Efficiency
8. Our uniquely customized steam system solutions deliver maximum energy efficiency and low emissions
9. ZOZEN Service
Our dedicated service team of experts and professionals is 24/7 available online to provide you with the best technical support.
10. ZOZEN Strengtn
Wuxi Zozen Boilers Co., Ltd. was founded in 1988. After 30 years development, manufacturing base covers hundreds of thousands of square meters. It ranks top in the industrial boiler sector in Asia in terms of the variety of its products, the level of automation in its manufacturing facility and the volume of its production. ZOZEN prides itself on an annual production capacity of over 2,000 industrial boilers.
Nowadays, ZOZEN's products have been exported to more than 100 countries and regions around the world and are used for application in chemical, pharmaceutical, paper, textile, food, electronics, automobile manufacturing, furniture, pesticides, biological products, building materials and many other industries.
